Our Solution

Wireless Connectivity Made Simple.

The Advantages of Our Solution

Reliable in-building wireless connectivity is more important than ever. And improving coverage and capacity indoors doesn’t have to be a cumbersome process. With Zinwave’s streamlined distributed antenna system, it is as simple as deploying a total of five components to provide indoor connectivity.
Our Solution is the only product on the market today that is truly wide-band, meaning we cover all frequencies 150MHz to 6GHz in one single simple layer of hardware.

Flexible

Our solution suits 2G, 3G, 4G & 5G plus works with public safety equipment and other private networks

Small & Unintrusive

Our equipment is very flexible and it can installed easily like WIFI

Enviromently Friendly

Our product has low plastic and copper use and is highly power efficient

Fast & Easy Install

Our teams are highly experienced and can make the installations process stress free

Uniwave

Uniwave from Zinwave is our new innovative, streamlined DAS platform developed to meet in-building cellular and public safety connectivity needs. It supports 2G, 3G, 4G and 5G as well as Public Safety and other private radio networks. Available in 3 configurations, SISO, MIMO and 4×4 MIMO.

Uniwave by Zinwave is the DAS solution that is simple. That’s part of our appeal. Get improved in-building cellular and public safety connectivity with a system comprised of just five total components: primary hub, secondary hub, optical module, service module and a remote unit. The Uniwave Remote Unit serves all frequencies from 150MHz to 6GHz. It’s this simplicity that makes the design and installation both easy and flexible, resembling how WiFi infrastructure is installed.

Zinwave_Product-Illustrations-09-09
Zinwave_Product-Illustrations-09-10

Unitivity 5000

Unitivity 5000 from Zinwave has been leading the way in DAS for over 10 years, it has been the unique technology behind Zinwave’s success.

It comprises of two remote units, the Low Band Remote (150MHz to 2.7GHz) & Mid Band Remote (3.3GHZ to 4.2GHz) covering all of the mobile frequencies used globally.

Unitivity 5000 allows up to 80% space savings and 17% energy efficiency, a built-in power supply for fewer parts and a universal mounting bracket for easier installation.

The new Uniwave product combines the frequency capabilities of both the Low and Mid Band remotes into one Ultra Wideband Remote, that also delivers a higher RF output power making coverage and dominance easier to achieve.

UniTransport

The UNItransport makes it possible for multiple buildings, up to 12km away to be fed from a central location.

The UNItransport solution cascades Zinwave systems via transport optical modules, supporting the full bandwidth of the UNItivity system via one pair of single mode fiber for each link. Benefits include equivalent performance (noise, linearity and RF power) inline with the current DAS, regulatory support for the EU and FCC, a common Primary Hub for the transport and DAS system, and high bandwidth RF transport from remote location to the serving DAS site.



Zinwave-Building-Towers

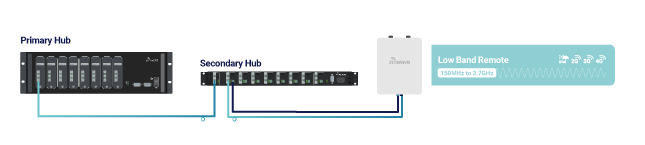

  • Low Band Remote Configuration

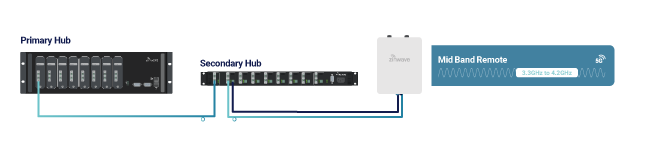

  • Mid Band Remote Configuration

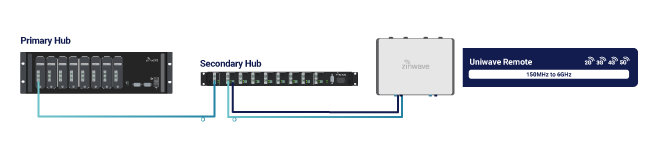

  • Uniwave Remote Configuration

DAS Components

Zinwave-5000-Series-Primary-Hub

Primary Hub

Receives, conditions and directs signals from the RF source(s)

Converts RF to optical and distributes signal to Remote Units or Secondary Hubs.

Connects to up to 8 Remote units, Secondary Hubs or combination of both

Zinwave-5000-Series-Secondary-Hub

Secondary Hub

Adds coverage or extends the reach of the system

Connects to Primary Hub via fiber

Provides optical and power connections for up to 8 Remote Units, without additional modules

Zinwave_ORU_Rend_050118.519

Low Band Remote Unit

Supports 2G, 3G, 4G, Public Safety as well as 2-way radio simultaneously

Unintrusive – typically mounted above ceiling tiles or out of sight locations

Can be mounted in any orientation and is supplied with plug-in mounting bracket

Zinwave_ORU_Rend_050118.519

Mid Band Remote Unit

Supports all 5G services

Unintrusive – typically mounted above ceiling tiles or out of sight locations

Can be mounted in any orientation and is supplied with plug-in mounting bracket

Zinwave-Ultra-Wide-Band-Remote-Front-facing-left

Uniwave Remote Unit

Supports 2G, 3G, 4G, 5G, Public Safety as well as 2-way radio simultaneously within a single enclosure

Unintrusive – typically mounted above ceiling tiles or out of sight locations

Can be mounted in any orientation and is supplied with plug-in mounting bracket

Zinwave-5000-Series-ervice-Module

Service Module

Provides interface to RF signal source

Up to four service modules can be deployed in the Primary Hub

Hot swappable

Zinwave-5000-Series-Optical-Module

Optical Module

Connects fiber links from Primary Hub to Secondary Hubs or Remote Units

Up to eight optical modules can be deployed in the Primary Hub

Hot swappable

Zinwave-5000-Series-Transport-Module-MOCKUP

Transport Module

Creates a Fiber Transport Link

Up to eight transport modules can be deployed in the Primary Hub

Zinwave-5000-Series-Primary-Hub

Primary Hub

Receives, conditions and directs signals from the RF source(s)

Converts RF to optical and distributes signal to Remote Units or Secondary Hubs.

Connects to up to 8 Remote units, Secondary Hubs or combination of both

Zinwave-5000-Series-Secondary-Hub

Secondary Hub

Adds coverage or extends the reach of the system

Connects to Primary Hub via fiber

Provides optical and power connections for up to 8 Remote Units, without additional modules

Zinwave_ORU_Rend_050118.519

Low Band Remote Unit

Supports 2G, 3G, 4G, 5G, Public Safety as well as 2-way radio simultaneously within a single enclosure

Unintrusive – typically mounted above ceiling tiles or out of sight locations

Can be mounted in any orientation and is supplied with plug-in mounting bracket

Zinwave_ORU_Rend_050118.519

Mid Band Remote Unit

Supports 2G, 3G, 4G, 5G, Public Safety as well as 2-way radio simultaneously within a single enclosure

Unintrusive – typically mounted above ceiling tiles or out of sight locations

Can be mounted in any orientation and is supplied with plug-in mounting bracket

Zinwave-Ultra-Wide-Band-Remote-Front-facing-left

Uniwave Remote Unit

Supports 2G, 3G, 4G, 5G, Public Safety as well as 2-way radio simultaneously within a single enclosure

Unintrusive – typically mounted above ceiling tiles or out of sight locations

Can be mounted in any orientation and is supplied with plug-in mounting bracket

Zinwave-5000-Series-ervice-Module

Service Module

Provides interface to RF signal source

Up to four service modules can be deployed in the Primary Hub

Hot swappable

Zinwave-5000-Series-Optical-Module

Optical Module

Connects fiber links from Primary Hub to Secondary Hubs or Remote Units

Up to eight optical modules can be deployed in the Primary Hub

Hot swappable

Zinwave-5000-Series-Transport-Module-MOCKUP

Transport Module

Creates a Fiber Transport Link

Up to eight transport modules can be deployed in the Primary Hub
